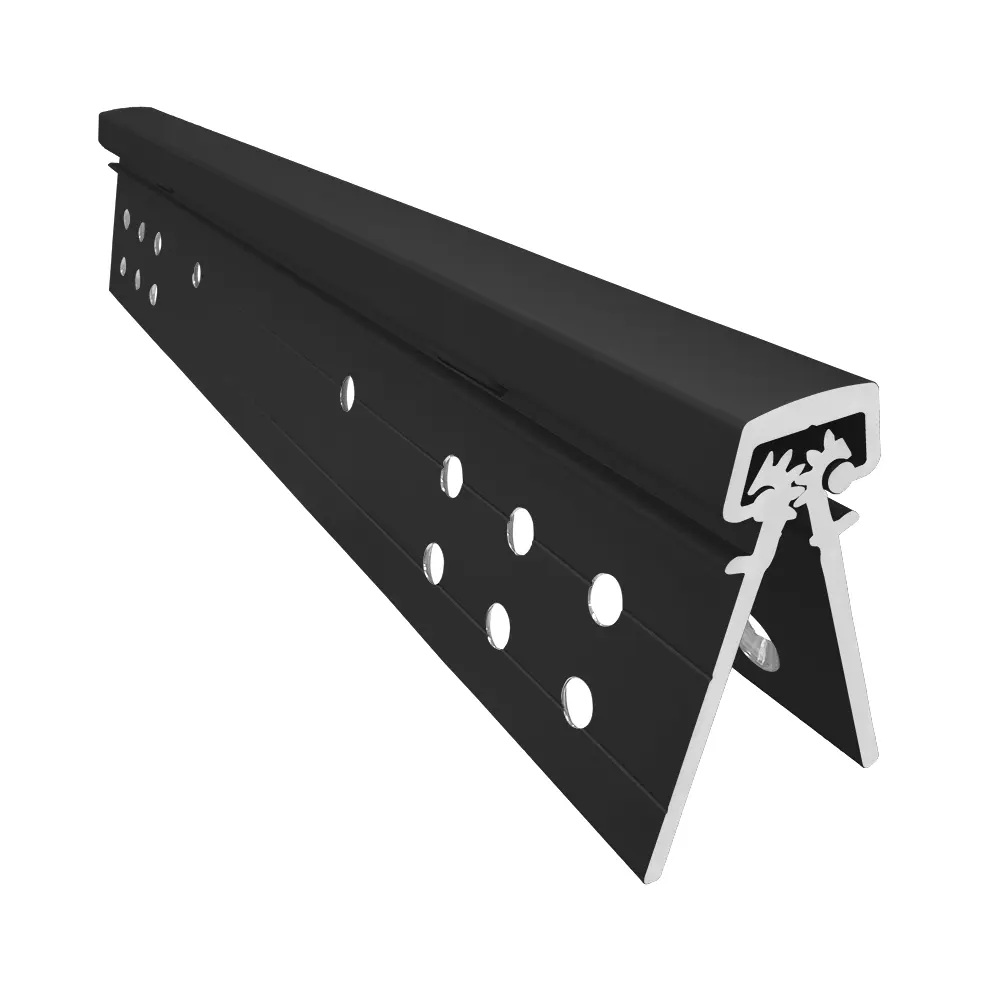

Customized LX-H02 Continuous geared hinge Suppliers, Factories
Continuous geared hinge is a heavy hinge. It is often connected between the door leaf and the door frame, so that it can move around the axis, thus achieving the opening and closing of the door.Long service life,Strong bearing capacity, fireproof, waterproof, cold-proof and corrosion-resistant. It can be used in indoor and outdoor environments, and it is suitable for all kinds of doors.
Basic Concept: A continuous gear hinge is a special hinge that realizes continuous rotation or folding functions through a series of intermeshing gears. This design enables the continuous gear hinge to maintain stable and smooth movement during opening and closing, while bearing a large load: the maximum weight capacity can reach up to 250kg.
Main Uses: Widely used in various occasions requiring smooth rotation or folding, such as doors and windows, furniture, and industrial equipment. It provides stable support and rotation functions, ensuring the normal operation of mechanical movements and maintaining a long service life.
2. Manufacturing Materials and Preparation
Manufacturing Materials: Hinge manufacturing materials typically include stainless steel, copper, aluminum, and other metal materials, as well as plastic, nylon, and other non-metal materials. These materials exhibit excellent mechanical properties and corrosion resistance to meet different application needs. Our continuous gear hinge is made of 6063 T5 aluminum alloy, which is waterproof, fireproof, and has strong corrosion resistance.
Preparation: Detailed drawing design and material preparation are required prior to production. The drawing design includes parameters such as the size, shape, and number of gears of the continuous gear hinge to ensure the manufactured hinge meets all design requirements. Necessary materials and machinery must be prepared, such as metal material cutting machines, gear molds, CNC, punches, etc. We have five standard drawings and dies for continuous gear configurations, and customers can customize them according to their needs, including the size, length, and shape of the hinges. We analyze and simulate based on customer ideas to provide reasonable and feasible suggestions.
3. Manufacturing Steps and Processing Technology
Gear Manufacturing: First, according to the design requirements of the drawings, a new mold is designed to ensure the tooth profile and pitch of the gear meet the specified requirements. The aluminum alloy is extruded into shape through the mold, cut to specific lengths, cooled, and then sent to an aging furnace for heat treatment to enhance its strength and hardness.
Hinge Assembly: Assemble the machined gears according to the design requirements. During the assembly process, close attention is paid to the meshing degree and rotation flexibility of the gears to ensure that the continuous gear hinge maintains stable and smooth movement when opening and closing. Additionally, the gears are fixed onto the main structure of the hinge by drilling and screwing.
Surface Treatment: To improve the corrosion resistance and aesthetic appeal of the continuous gear hinge, we perform surface treatments including anodizing and spraying. These treatments form a protective film on the surface of the hinge to prevent damage from oxidation and corrosion while enhancing its appearance.
4. Quality Inspection and Debugging
Quality Inspection: After the production of the continuous gear hinges is completed, strict quality inspection is conducted. The inspection coverage includes the degree of gear bite, rotation flexibility, rotation cycles, load-bearing capacity, and more. Quality inspection ensures that the manufactured hinges conform to all design requirements and application standards.
Debugging and Optimization: If any issues or defects are identified during the quality inspection phase, timely debugging and optimization are executed. The debugging process involves adjusting the meshing degree of the gears and calibrating the rotation flexibility of the hinges. Through debugging and optimization, we guarantee that the hinge reaches its optimal operational state before official deployment.

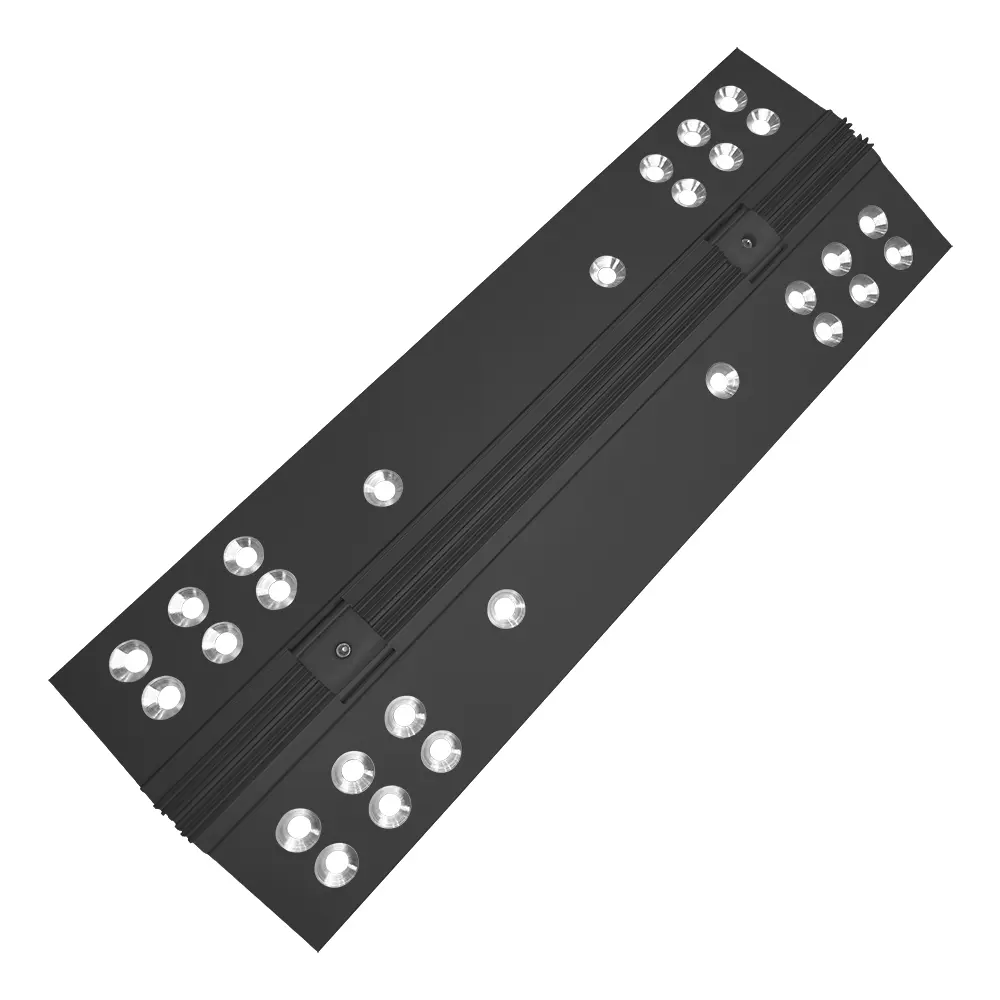

Continuous Geared Hinge Display
Frequently Asked Questions (FAQ)
What is a continuous geared hinge and how does it work?
A continuous gear hinge is a specialized hinge that utilizes a series of intermeshing gears to achieve smooth, continuous rotation or folding. This design ensures stable movement during operation and allows the hinge to distribute weight evenly along the entire length.
What is the maximum load capacity of these hinges?
Due to their robust design and geared construction, these continuous geared hinges can support high-load applications with a maximum weight capacity of up to 250kg.
What materials are the continuous geared hinges made of?
Our continuous geared hinges are manufactured using high-grade 6063 T5 aluminum alloy. This material selection provides excellent waterproof, fireproof, and high corrosion-resistant properties.
Can customers request custom sizes and shapes?
Yes, customization is fully supported. We maintain five standard drawings and dies for continuous geared configurations, allowing clients to customize the size, length, and shape based on their project requirements.
What surface treatments are applied to these hinges?
To improve both performance and aesthetics, we apply professional surface treatments including anodizing and spraying. This forms a protective layer to prevent oxidation and environmental degradation.
How do you ensure the quality of the geared hinges?
Every batch undergoes strict quality checks, including evaluations of gear bite precision, rotation flexibility, load capacity limits, and operation cycle limits. Adjustments and optimizations are carried out prior to dispatch.
